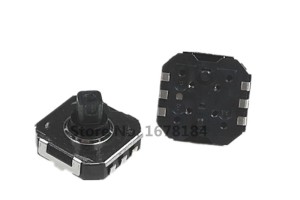

Micro SMD/SMT 5-way joystick, SF303GJ26-3
retail
Is a 5-way tactile directional input device with surface mount (SMD) by very compact dimensions; can be moved in all four directions and also clicked centrally. Ideal for use in projects where you have to navigate within menus or just as spare parts because it is largely used in controllers, game pad and input devices.
Technical specification:
Number of ways: 5
Travel: 4-directional: 0.25 ± 0.1mm, center: 0.15 ± 0.1mm
Operational force: 4-directional: 130 ± 50gf, center: 240 ± 50gf
Contact resistance: 500mOhm max.
Number of contacts: 6
Maximum voltage: 12VDC
Maximum current: 50mA
Life cycles: 100,000
Size: 7.5 x 7.5 x 5.0(h) mm
