Klinken-Audio-Steckverbinder, 3 Kontakt(e), Buchse, 3.5 mm, Panelmontage
retail

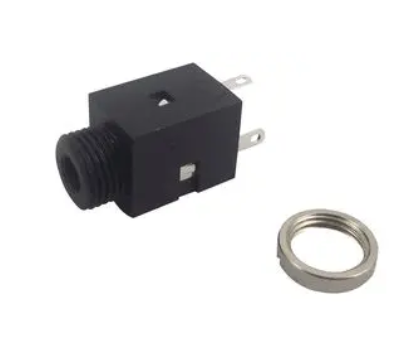

The FC681374V from Cliff Electronic Components is a stereo switched 3.5mm vertical jack socket made of polybutylene terephthalate body material with silver plated contacts.
3 contacts
Vertical panel mounting
Available with solder tags
Supplied with ring nut
Maximum contact resistance of 30mohm
Dielectric withstand voltage of 500VAC/1 minute
Minimum insulation resistance of 100Mohm at 500VDC
