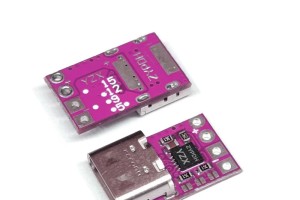

USB PD Trigger Board 100W 5A
retail
A PD decoy 5V 9V 12V 15V 20V fully supported, hardware jumper solder joints set the voltage, there is no wrong touch or poor contact or software crashes resulting in voltage errors.
Very low static power consumption 1.5mA
DIY by yourself, built into various devices that require 5-20V, set the voltage, compatible with PD power supply,
The maximum 20V5A100W support, the specific output power depends on how much the charger supports the corresponding gear.
Volume: length 21mm width 11mm thickness 4.3mm
Input protocol: PD2.0 or PD3.0
Trigger gear: 5V, 9V, 12V, 15V, 20V, see the figure below for the specific setting method
Static power consumption: less than 1.5mA in all gears

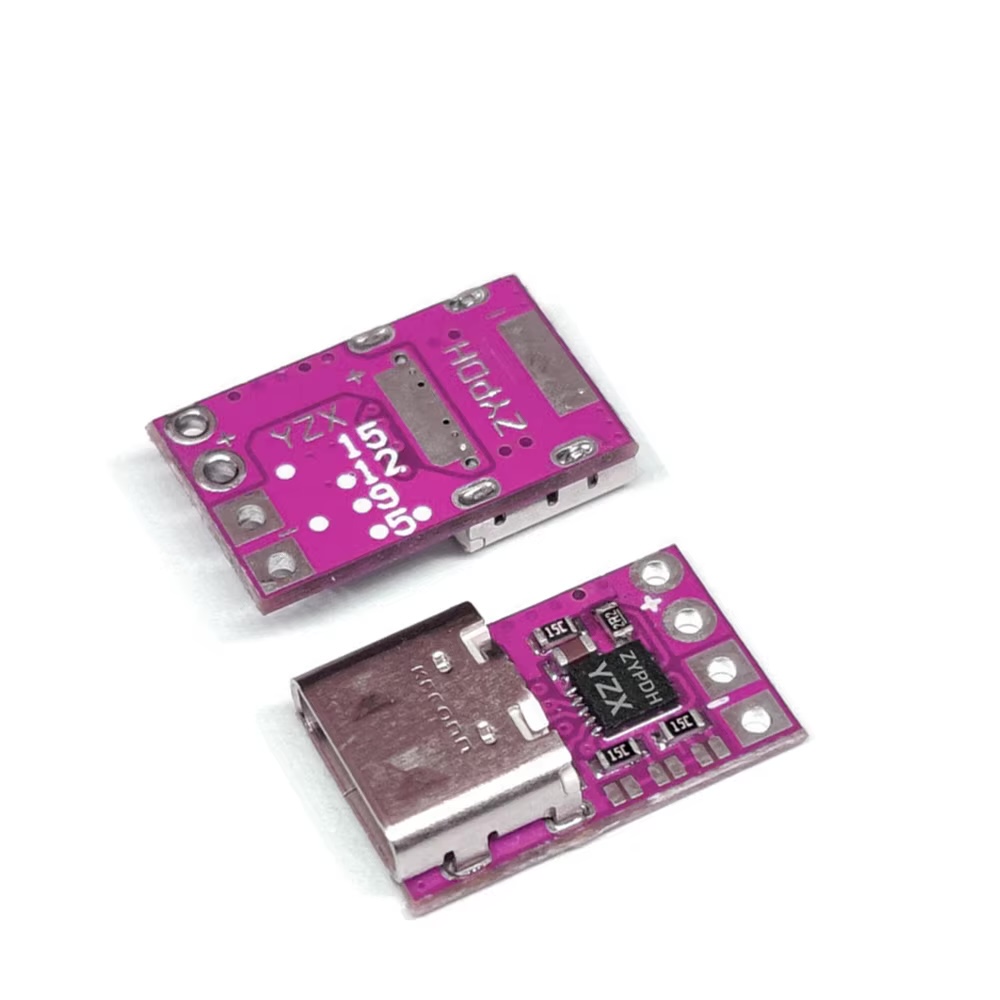

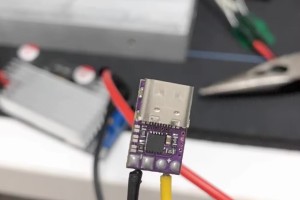

Output pads: 4 pitches of 2.54mm, square negative round positive

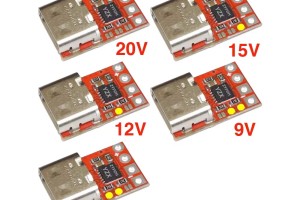

Method of setting voltage: As shown in the figure, the red dot represents two pad halves connected by a drop of solder.
The output is connected to 20V by default. It is recommended to actually check the output voltage before use.
If you set 15V, connect the four jumper pads on the front with 20V, and then connect the 15V jumper pads on the back.
