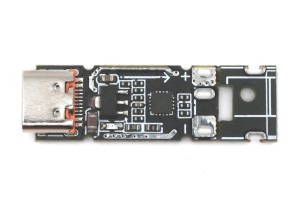

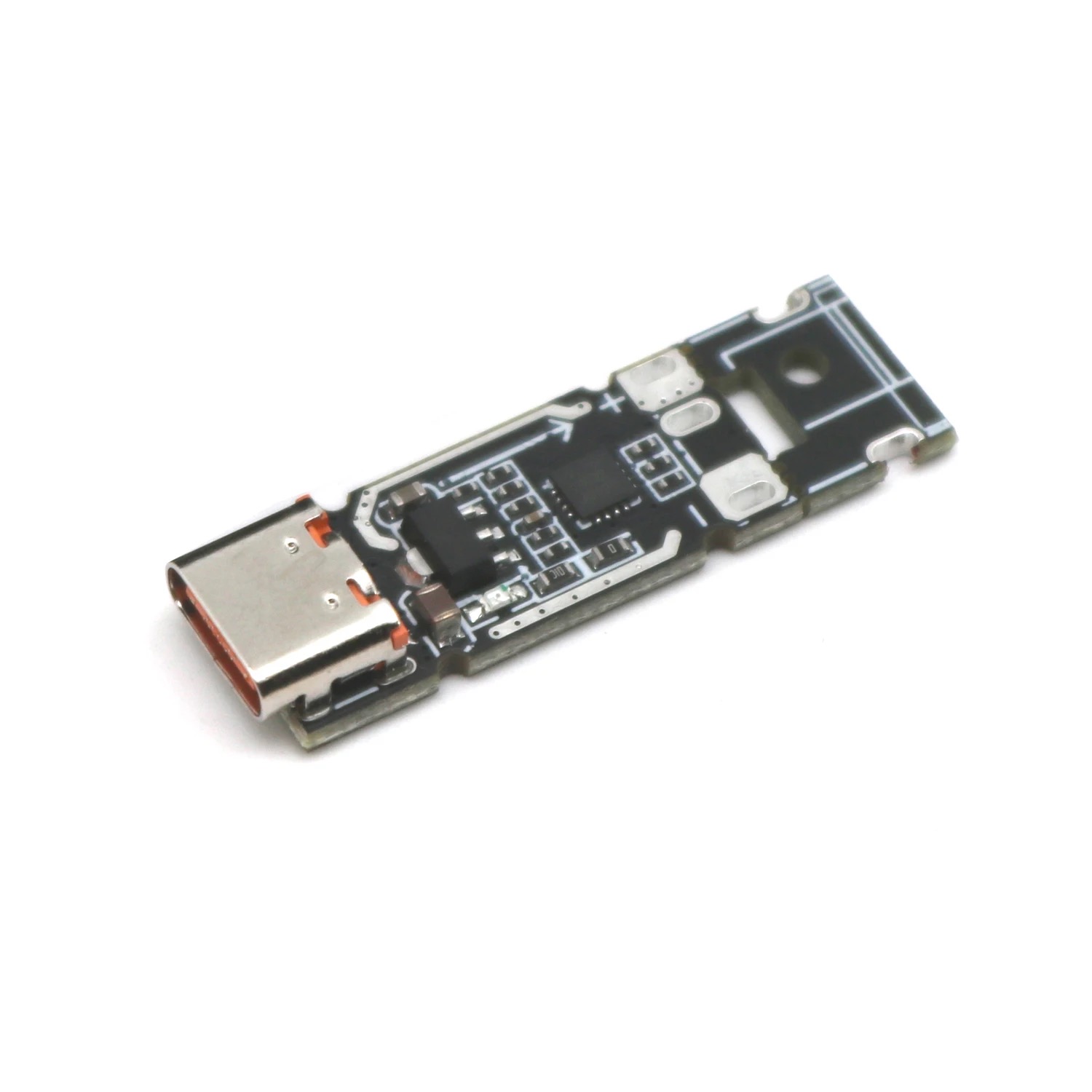

PD3.1 140W USB PD Triggers 28V
retail
PD3.1:5V, 9V, 12V, 15V, 20V, 28V
Support PD protocol :5V, 9V, 12V, 15V, 20V
Support QC protocol :5V, 9V, 12V, 20V
Support Samsung AFC protocol :5V, 9V
Supports FCP protocol :5V, 9V, 12V
Size 34.7x11mm
Interface: Type-C interface

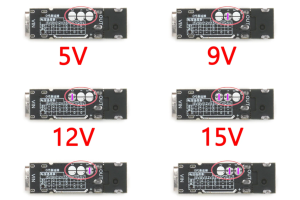

Output voltage: Default 28v what voltage you need, short the corresponding pads on the line,
Current :5A(maximum), requires front-end power supply head or charging bank has the corresponding protocol support
Supported protocols :PD2.0, PD3.0, PD3.1 QC2.0, QC3.0 QC4,QC5
Product Description:
Module default output 28v can adjust different resistance, can output 5V 9V, 12V, 15V, 20V voltage respectively, can be in accordance with the protocol priority, automatically complete the handshake with the charger, and according to the preset voltage output. The output of the decoder cannot be charged directly to the mobile phone. Please confirm the matching of the output voltage and the load demand voltage before loading.
For example, when the customer chooses a 9V output decoy, the front power supply head needs to match the PD9V or QC9V protocol; When the customer chooses a decoy with a 20V output, the front power supply head needs to have a protocol matching PD9V or QC20V.
