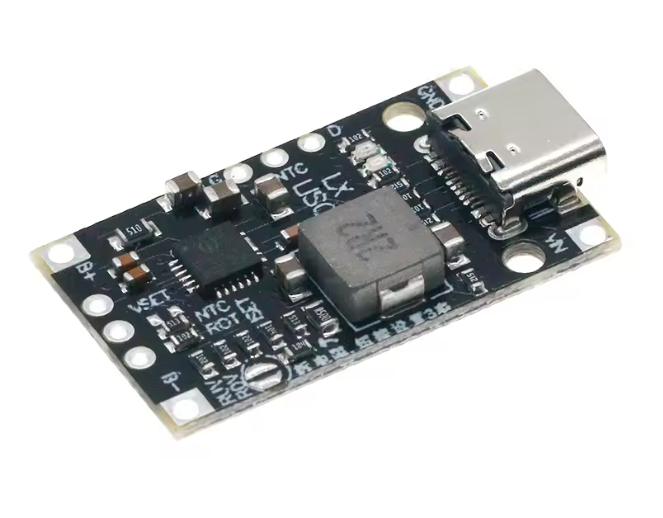

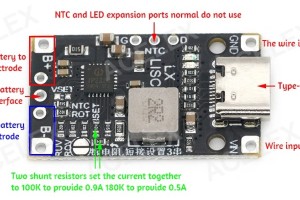

001284 - USB-C 2S Charger BMS

The module is applicable to two or three channeled 3.7V lithium batteries. By short circuit setting, the default is two strings. When two strings are used, the module can use its own battery equalization function, which is very practical. The type-c port and welding wire can be used for input. When the type-c port is connected to the fast charging power supply, the charging voltage is automatically adjusted to improve efficiency. If the input voltage is less than the battery voltage when the welding wire is input, the module can only work in the boost state.
Product Parameters
Support QC fast charge
15W synchronous switching boost charging
Boost charging efficiency 94%
Can be set to charge 2 or 3 strings of lithium batteries
2 strings with balanced charging
Adjustable charging current
Input over-voltage and under-voltage protection
Adjustable charging timeout protection
Output over-current, over-voltage, short circuit protection

https://www.youtube.com/watch?v=wK8HnHR4wDE
