000801 - S6128 THB6128 Stepper Treiber

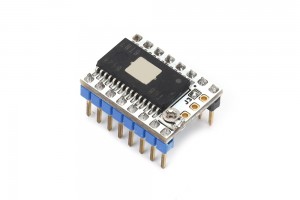

The SureStepr SD6128 is a stepper driver board based on the THB6128 chip. It is simple to use and operate using an indexer (DIR/STEP) interface to move the stepper motors. The SD6128 is a drop-in replacement for Pololu style footprint drivers including the SD8825, A4988, A4983 and Stepsticks. One distinct feature of the SD6128 is that heat pad is located at the top of the chip. This makes heat sinking a lot easier and does not rely on the already small PCB area for heat dissipation.

Feature
Made with 4 Layer RoHS PCB
1, ½ , ¼, ?, 1/16, 1/32, 1/64 and 1/128 Microstepping
Up to 2.2A peak drive current
Top mounted heat pad
Larger heat sink mounting area

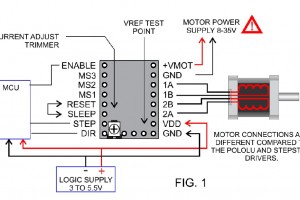

Easy to use DIR/Step interface

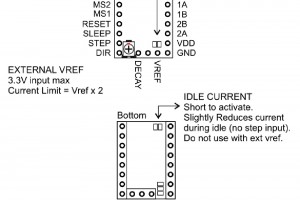

Output pins for Decay and external Vref
Driver Chip:THB6128 with over current and over temp protection
Current Motor Supply : 2.2A max
Motor Voltage: 35V max

Warning:
Static sensitive - Handle with care, remove from packaging only when ready to mount.
Check munting orientation before inserting. Drivers will be damaged when improperly inserted, can potentially damage host controller too.
Turn off power when connecting/disconnecting motors, Do not insert driver when main board is powered.
Chip, heat pad and heat sink can get really hot, avoid touching while in operation.
Install heatsink with adhesive thermal pad, ensure that it does not come in contact with pins or any other conductive part of the board.

Package listing:

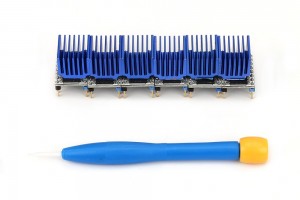

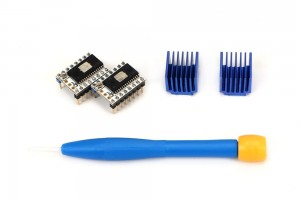

5 x s6128

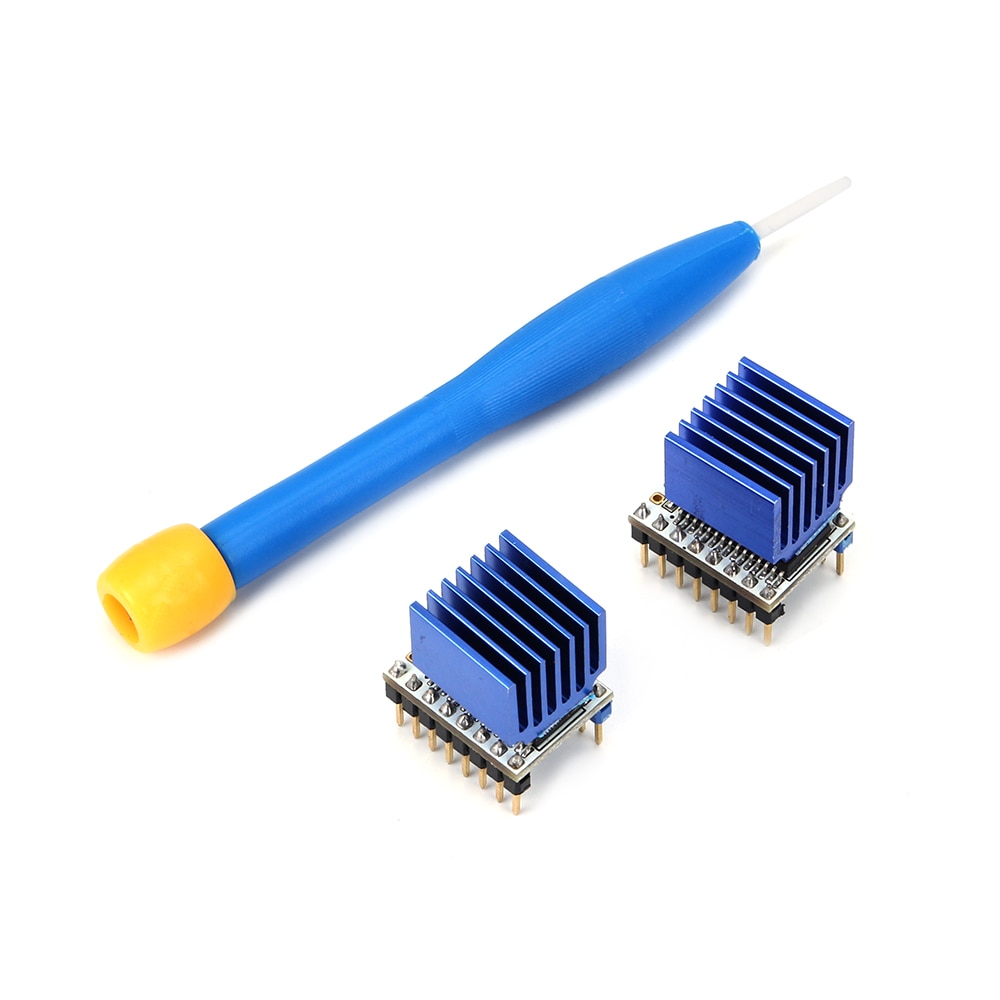

5 x heatsink
gift:1xscrewdriver
note:everyone only have one screwdriver as a gift!!!!!
